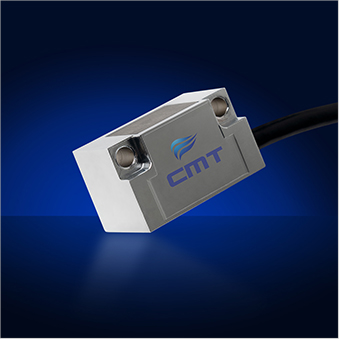

Product Fanuc A860-2150-V001 spindle encoder (fanuc replacement)
Product details| Output type | Sine/Cosine |
|---|---|
| Supply Voltage | DC+5[V] Ripplep-p：less than 5% |
| Current Consumption (Without load) | 50mA Max |
| Maximum Response Frequency | 200kHz |
| Output level | 1 Vpp Differential signal |
| Output current | Less than 50mA |
| Electromagnetic emissions | KS C lEC 61000-6-2 |
| Electromagnetic Immunity | KS C IEC 61000-6-4 |
| Dielectricstrength | KS C IEC 61439-1 (500 V AC) |
| Output | Sine/Cosine |
|---|---|
| Signal | A : 1Vpp Sine signal /A : 1Vpp-Sine signal B： 1Vpp Cosine signal /B : 1Vpp-Cosine signal Z : Digital Pulse signal(+) /Z : Digital Pulse signal(-) ￫ Signal in CW A & B 90°phase, Signal in CCW A & B -90° phase ￫ According to Gear Wheel Reference Mark, Digital differential pulse signal. Gear Wheel module : M1.0 |
| Operating Temp. Range | -10°C ~ +70°C (No freezing) |
|---|---|
| Storagetemp | -30°C ~ +120°C |
| Protectionclass | IP68 (KSCIEC60529) |
| InternalVibratio | 10~55Hz / 2mm (X, Y 20 Cycle / Z 50 Cycle) |
| Internalshock | 50G |
| weight | 100G |
| Cable Length | 1.2M /2.1M |
|---|---|
| Cable output | Ø5 |
| Connector spec | JN1HS10PL |
| Insulation spec | 3P (AWG28) Shield CABLE |
| Cable meterial | Special TPU (Max.121°C) |
| Certificationstandard | AWM20936 |
| Connector | pin | Output Signal | Relative |
|---|---|---|---|
 |
1 | B+, Cosine+ |  |
| 2 | B-, Cosine- |  |
|
| 3 | Shield | ||
| 4 | Vcc, +5V | ||
| 5 | A+, Sine+ |  |
|
| 6 | A-, Sine- |  |
|
| 7 | OV, GND | ||
| 8 | Z+, Reference Pulse+ |  |
|
| 9 | Z+, Reference Pulse- |  |
|
| 10 | Non |
