Product Spindle encoder ring

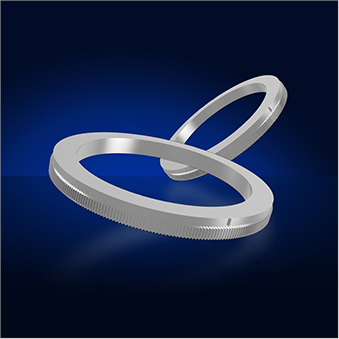

Spindle encoder ring
#products #spindle encoder #spindle encoder ring

With reference marks for tooth

  • Customer-specific modifications possible (individual inside diameter, tooth number, bores, threads, feather keyways)
  • Multifunctional design allows the encoder ring to be used as a bearing cover, for example
  • The ring form a contactless measuring system for rotational speed and position detection
Product details
Technical data SPINDLE ENCODER RING
Field of application Milling spindles, grinding spindles and workpiece axes in machine tool manufacturing, torque motors, test bench motors
Standard number of teeth 128, 192, 256, 384, 512~1024 (M0.4)
Width 8.6 and 10 mm
Module 0.3 to 1.0
Material Carbon steel
Reference mark tooth
Programming and testing unit GEL 211 CSO
Sensor Gear Ring Specification (FANUC)
NAME Drawing No. Remarks
Waterproof connector Npn-Waterproof connector Number of teeth Maximum speed Detection ring
Inner diameter Outer diameter
α iBZsensor 128 A860-2150-T201 A860-2155-T201 128 20,000 min-1 Ø40 Ø52
α iBZsensor 128H A860-2150-T211 A860-2155-T211 70,000 min-1
α iBZsensor 192 A860-2150-T311 A860-2155-T311 192 40,000 min-1 Ø60 Ø77.6
α iBZsensor 256 A860-2150-T401 A860-2155-T401 256 15,000 min-1 Ø82 Ø103.2
α iBZsensor 256S A860-2150-T404 A860-2155-T404 Ø88
α iBZsensor 256H A860-2150-T411 A860-2155-T411 30,000 min-1 Ø82
α iBZsensor 384 A860-2150-T511 A860-2155-T511 384 15,000 min-1 Ø125 Ø154.4
α iBZsensor 512 A860-2150-T611 A860-2155-T611 512 10,000 min-1 Ø160 Ø205.6
  • mm I 450
  • Max. workpiece diameter
Precision Specification (CMT)
NAME Resolution in Cs axis control Accuracy (typ.)
α iBZsensor 128 / 128H 360,000/rev. 30/1000 deg.
α iBZsensor 192 25/1000 deg.
α iBZsensor 256 / 256H / 256S 20/1000 deg.
α iBZsensor 384 15/1000 deg.
α iBZsensor 512 10/1000 deg.
  • Measured by klingelnberg gear tester
  • DIN grade “3~4”

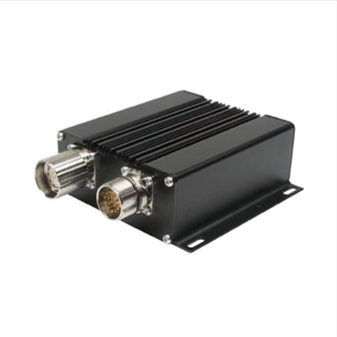

Testing and programming unit
GEL 211

  • for sensors with sin/cos output 1V

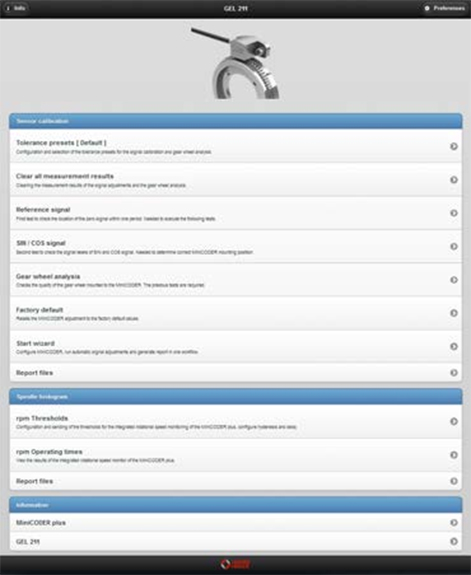

  • Start screen for the web interface

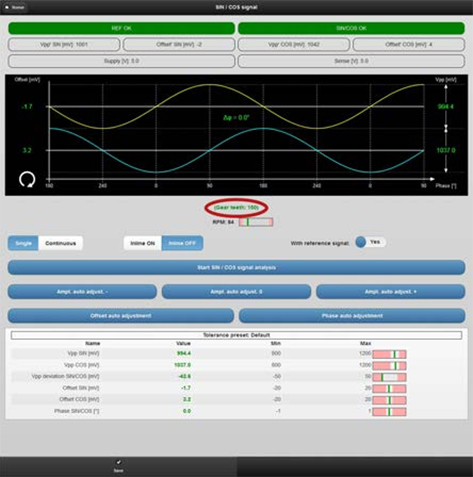

  • Display of the SIN/COS signals for the signal analysis
    information on the tooth-to-tooth values
    and indication of the average values over one turn

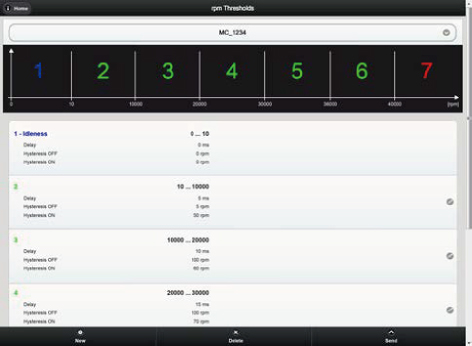

  • Definition of speed ranges for the MiniCODER plus

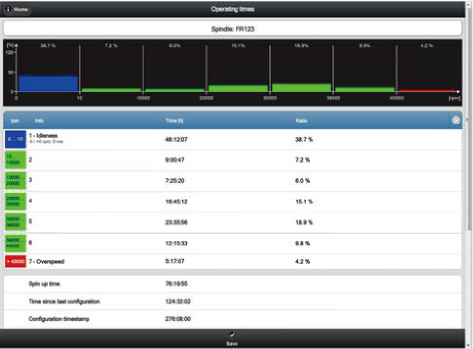

  • Duration of operation in different speed ranges
    display of the configurable operating hours counter
    in the MiniCODER plus
